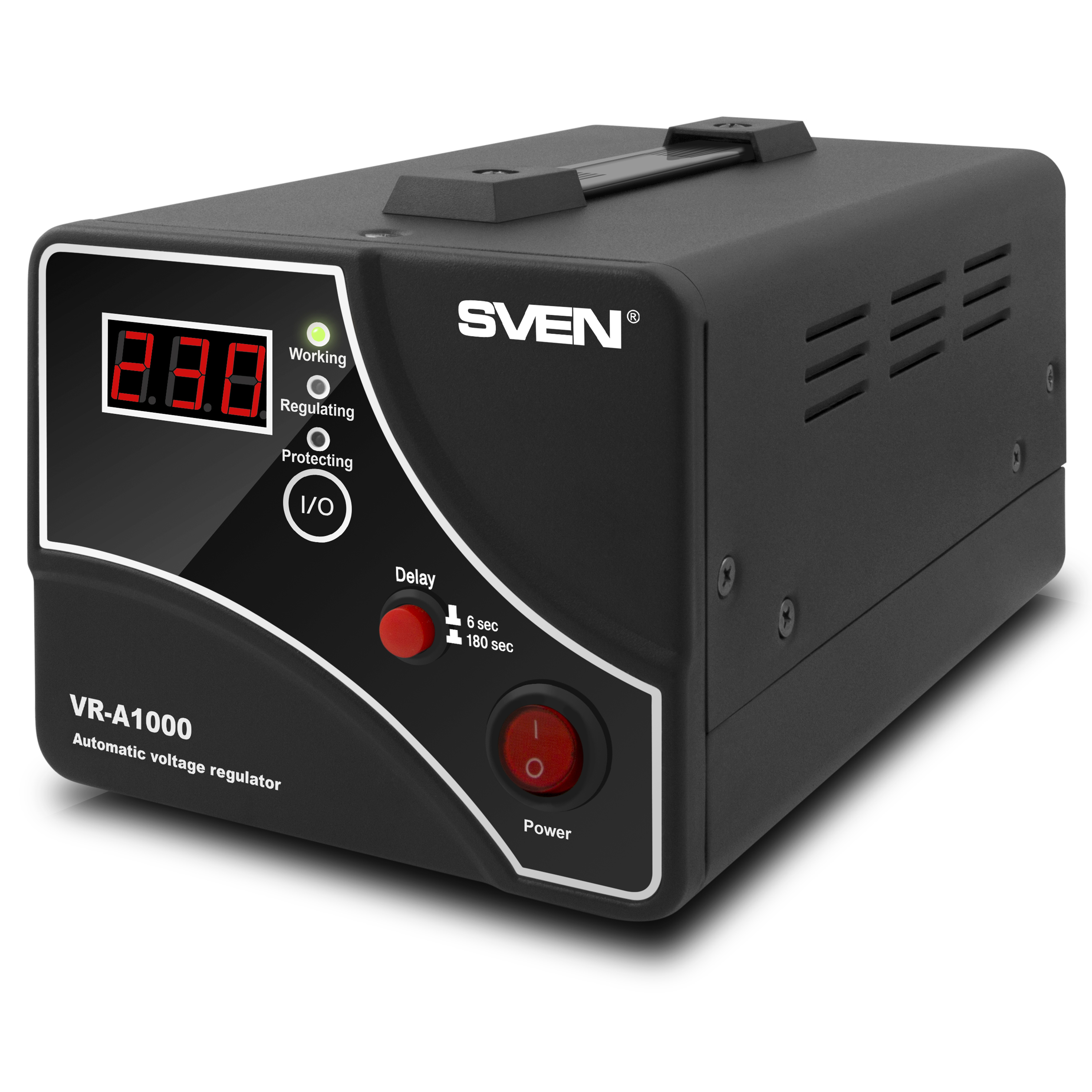

SVEN VR-A1000
Relay automatic voltage regulator, 600 W, socket
AN: SV-014407
SVEN VR-A1000
Relay automatic voltage regulator, 600 W, socket
Short product description:
- Single-phase relay-type stabilizer
- Microprocessor control
- Metal body
- LED indication of operating modes
Similar products
SVEN VR-L600
SVEN VR-L1000
SVEN VR-L1500
SVEN AVR SLIM-500 LCD
SVEN AVR SLIM-1000 LCD
SVEN AVR SLIM-2000 LCD
SVEN VR-F600
SVEN VR-F1000
SVEN VR-F1500
SVEN VR-L600
SVEN VR-L1000
SVEN VR-L1500
SVEN AVR SLIM-500 LCD
SVEN AVR SLIM-1000 LCD
SVEN AVR SLIM-2000 LCD
SVEN VR-F600
SVEN VR-F1000
SVEN VR-F1500
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Single-phase relay-type stabilizer
- Microprocessor control
- Metal body
- LED indication of operating modes
- Increased accuracy of output voltage stabilization
- Thermal protection of the transformer
- Safe shutdown at high and low mains voltage levels
- Varistor protection against high-voltage impulse noise
- EU socket CEE7/4 (EU) with durable fixation of plugs of any type
- Pause function to delay the power supply (6-180s) when resumed Input voltage ~140-275V (±3%)
- Children protection
| AVR type | relay |
| Total power, VА | ≤1000 |
| Maximum load, W | ≤600 |
| Input voltage, V | ~140-275 (± 3%) |
| Output voltage, V | ~230 (-14/+10%) |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 |

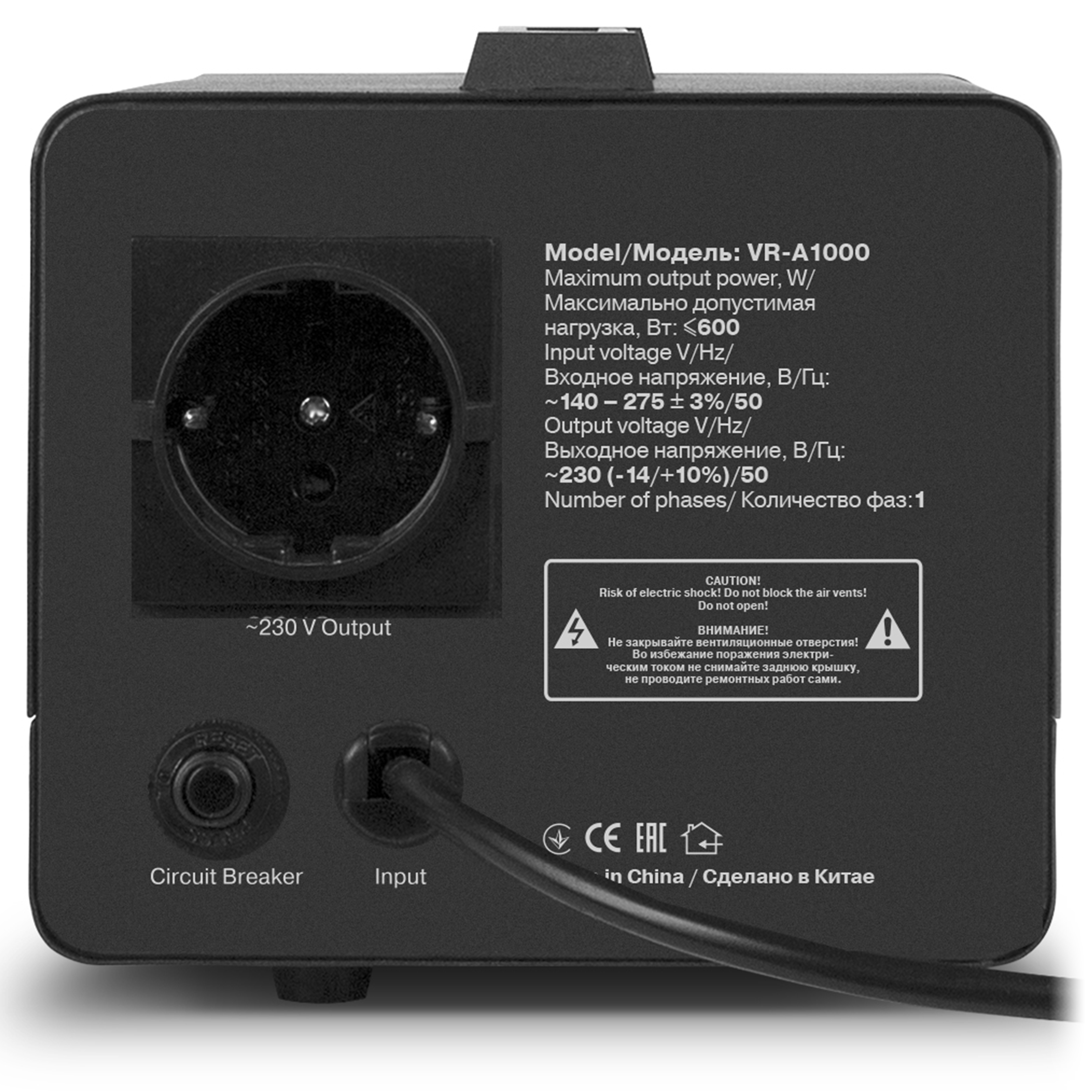

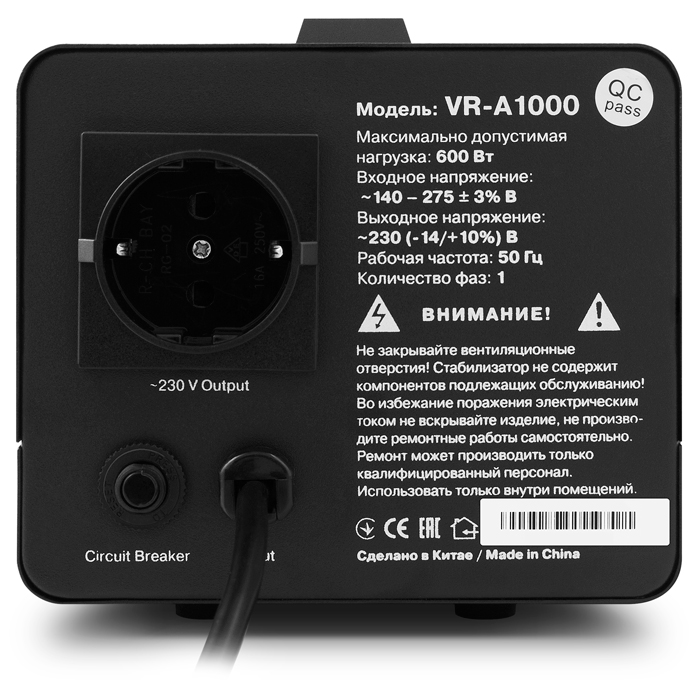

| Output sockets | 1 × СЕЕ7/4 |
| Protection | high/low voltage, short circuit; overload, high-frequency interference, built-in thermal protection |
| Protection operating current, A | 7 |
| Typical switching time, ms | ≤ 10 |

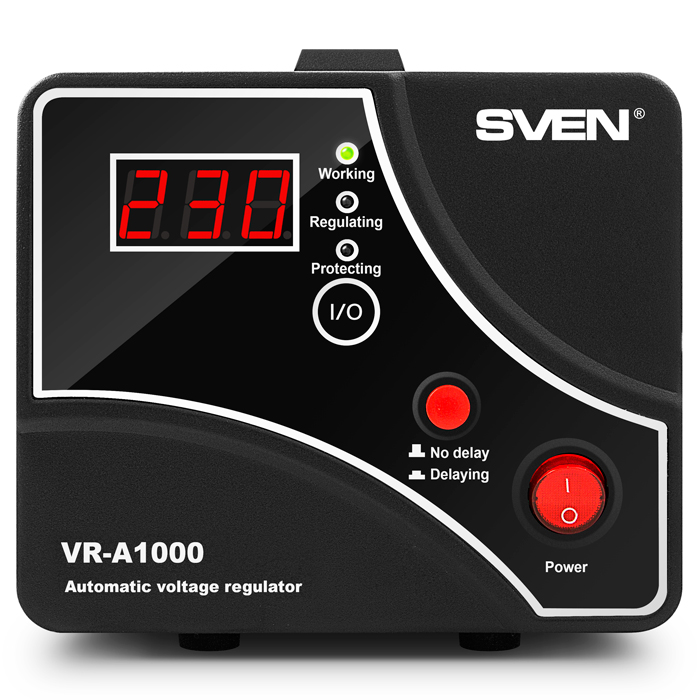

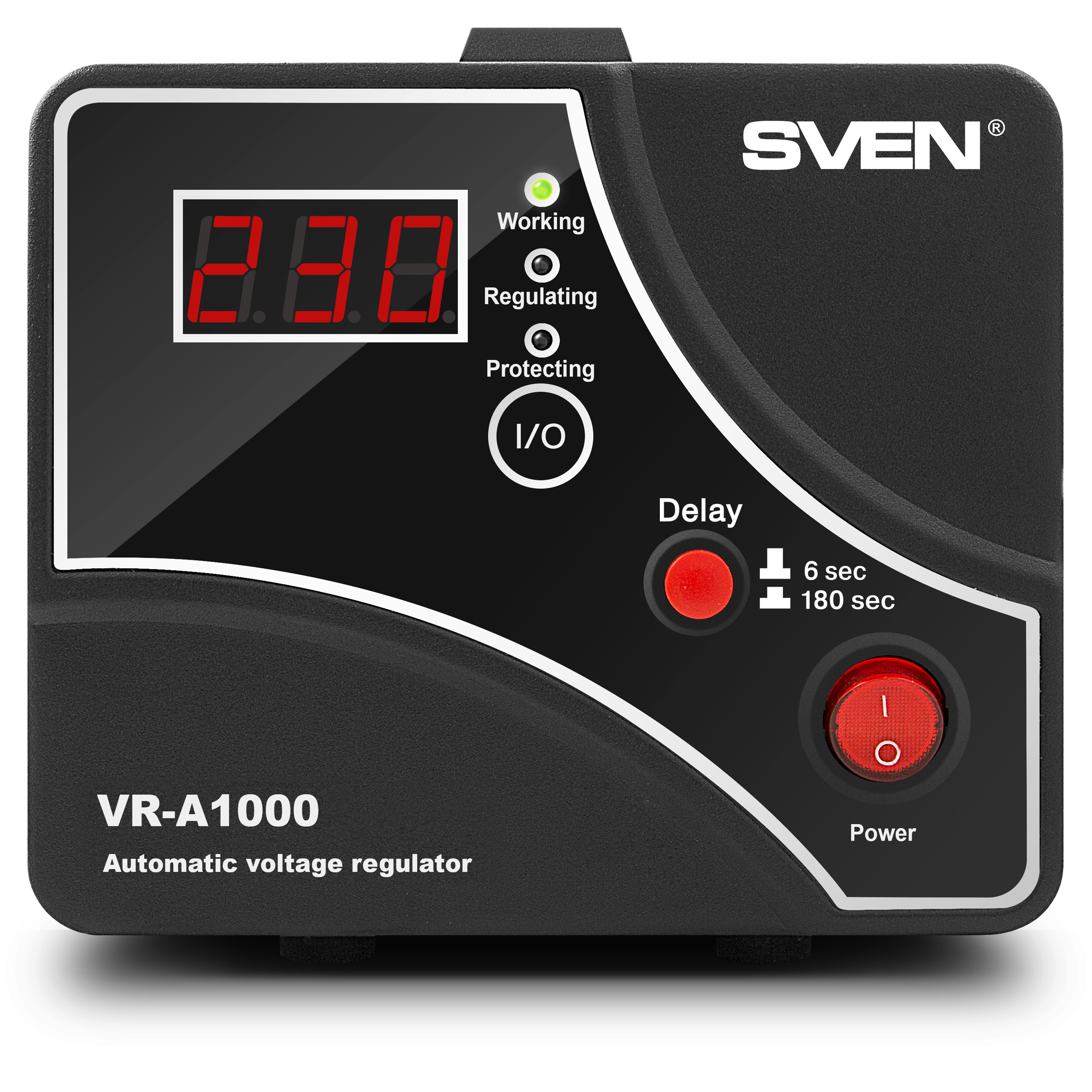

| Indicators | Delaying / protection, Working, Regulating |
| Fuse | bimetallic circuit breaker |
| Input plug | 1 × СЕЕ7/7 |
| Environmental temperature, °С | 0 to +40 |
| Relative humidity, % | 10 ~ 90 (without condensation) |
| Cable length, m | 1.3 |
| Case material | metal |
| Dimensions (W × H × D), mm | 220 × 118 × 140 |
| Weight, kg | 2.6 |
| Color | black |
| Product life | 5 years |
Package contents
- Automatic voltage regulator — 1 pc
- User manual — 1 pc
- Warranty card — 1 pc
