SVEN VR-F1000
Relay automatic voltage regulator, 320 W, 4 sockets
AN: SV-018818
SVEN VR-F1000
Relay automatic voltage regulator, 320 W, 4 sockets
Short product description:
- Protection against high voltage, low voltage, HF and noise
- High overload capacity
- Safe shutdown at high and low mains voltage levels
- AVR Overload and short circuit protection
Similar products
SVEN VR-L600
SVEN VR-L1000
SVEN VR-L1500
SVEN VR-A1000
SVEN AVR SLIM-500 LCD
SVEN AVR SLIM-1000 LCD
SVEN AVR SLIM-2000 LCD
SVEN VR-F600
SVEN VR-F1500
SVEN VR-L600
SVEN VR-L1000
SVEN VR-L1500
SVEN VR-A1000
SVEN AVR SLIM-500 LCD
SVEN AVR SLIM-1000 LCD
SVEN AVR SLIM-2000 LCD
SVEN VR-F600
SVEN VR-F1500
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Protection against high voltage, low voltage, HF and impulse noise
- High overload capacity
- Safe shutdown at high and low mains voltage levels
- AVR Overload and short circuit protection
- Built-in surge protector for protection against HF pulses and interference
- Thermal protection of the transformer
- LED indication of operating modes
- Automatic fuse for protection against overloads and short circuits in the switch key
- Wall mountable
- Input voltage ~180-285V (±3%)
- Output voltage ~230V (-14/+10%)
- Four output sockets CEE 7/4 (2×AVR, 2×surge protector)
| Maximal output power, W | ≤320 |
| Input voltage, V | ~180V-285V±3% |
| Output voltage, V | ~230 (-14/+10%) |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 |
| Input socket | 1 × СЕЕ7/7 |
| Output sockets | 4 × CEE7/4 (2 for AVR, 2 for surge protection) |
| Protection operating current, A | 5 |
| Typical switching time, ms | ≤10 |
| Environmental temperature, °С | 0 to +40 |
| Relative humidity, % | 10 ~ 90 (without condensation) |
| Dimensions (W × H × D), mm | 230 × 120 × 102 |
| Weight, kg | 1.35 |

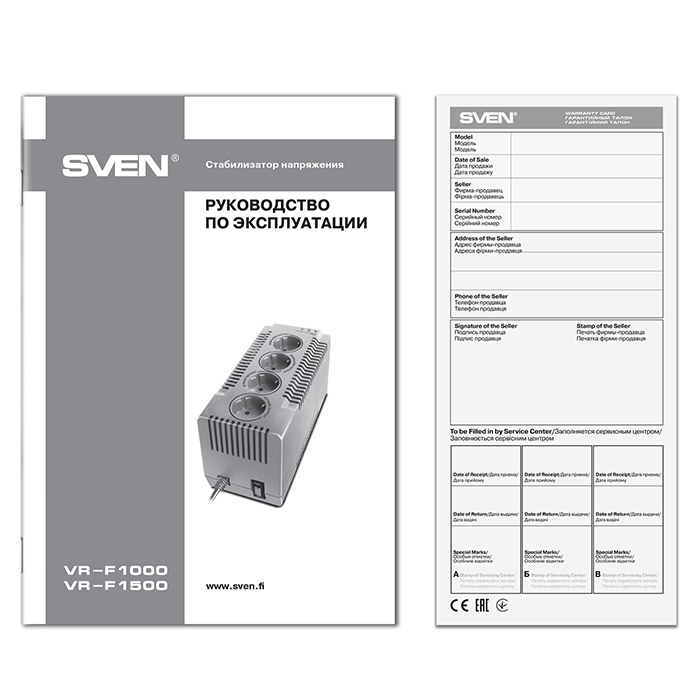

Package contents
- Automatic voltage regulator — 1 pc
- User manual — 1 pc
- Warranty card — 1 pc
