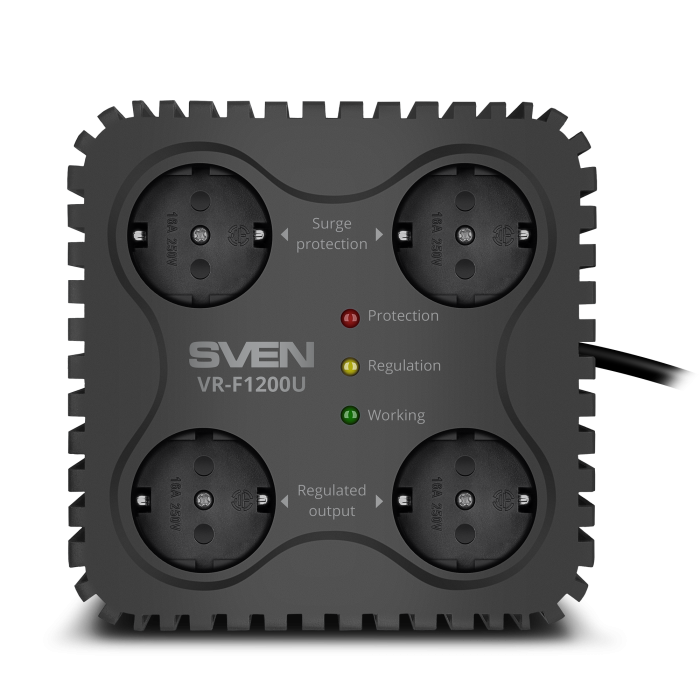

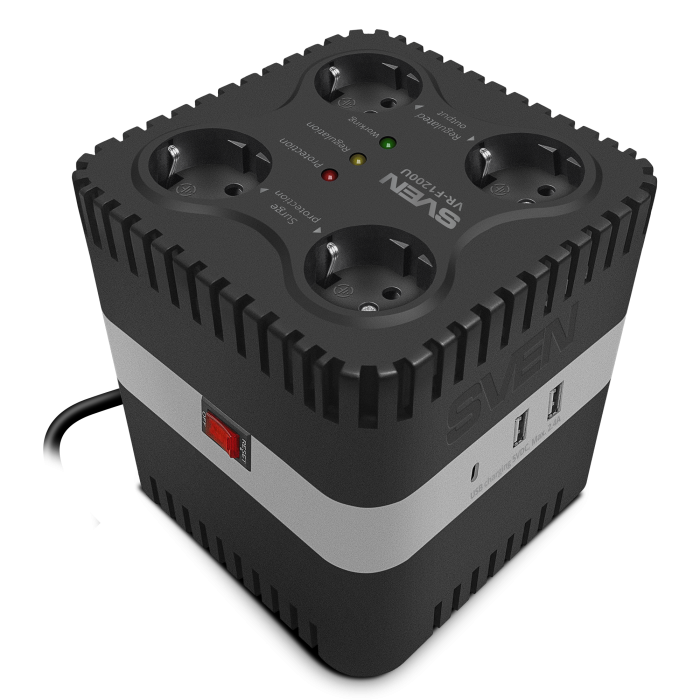

SVEN VR-F1200U
Relay automatic voltage regulator, 330 W, 4 sockets
New
AN: SV-022761
SVEN VR-F1200U
Relay automatic voltage regulator, 330 W, 4 sockets
Short product description:
- Input voltage ~170-285 V (±3%)
- Output sockets 4 × CEE 7/4 (2 × AVR and 2 × surge protector)
- Additional outputs 2 × USB-A and 1 × USB type-C
- Wall mountable
Similar products
SVEN VR-L600
SVEN VR-L1000
SVEN VR-L1500
SVEN VR-A1000
SVEN AVR SLIM-500 LCD
SVEN AVR SLIM-1000 LCD
SVEN AVR SLIM-2000 LCD
SVEN VR-F600
SVEN VR-F1000
SVEN VR-F1500
SVEN VR-F2000U
SVEN VR-L600
SVEN VR-L1000
SVEN VR-L1500
SVEN VR-A1000
SVEN AVR SLIM-500 LCD
SVEN AVR SLIM-1000 LCD
SVEN AVR SLIM-2000 LCD
SVEN VR-F600
SVEN VR-F1000
SVEN VR-F1500
SVEN VR-F2000U
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Single-phase relay-type stabilizer
- Input voltage ~170-285 V (±3%)
- Output voltage ~230 V (-10/+10%)
- Four output sockets CEE 7/4 (2 × AVR, 2 × surge protector)
- Additional connectors 1 × USB type-C and 2 × USB-A with a total maximum output current of 5 V /2.4 A
- Safe shutdown at high and low mains voltage levels
- Select the time to delay power supply (6 or 180 seconds) when power is restored
- Built-in surge protector for protection against HF pulses and interference
- Wall mountable
- LED indication of operating modes
- Automatic fuse for protection against overloads and short circuits in the switch key
- Thermal protection of the transformer
| Maximal output power, W | ≤330 |
| Input voltage, V | ~170 - 285 (±3%) |
| Output voltage, V | ~230 (-10/+10%) |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 |
| Input socket | 1 × СЕЕ7/7 |
| Output sockets | 4 × CEE7/4 |
| Protection operating current, A | 3 |
| Typical switching time, ms | ≤10 |
| Maximum absorbed impulse noise power, J | ≤320 |
| Turn-on delay time, sec | 6/180 |
| Environmental temperature, °С | 0 to +40 |
| Relative humidity, % | 10 ~ 90 (without condensation) |
| Cable length, m | 1.2 |
| Dimensions (W × H × D), mm | 142 × 158 × 146 |
| Weight, kg | 2 |
| Color | black |
Package contents
- Automatic voltage regulator — 1 pc
- User manual — 1 pc
- Warranty card — 1 pc
