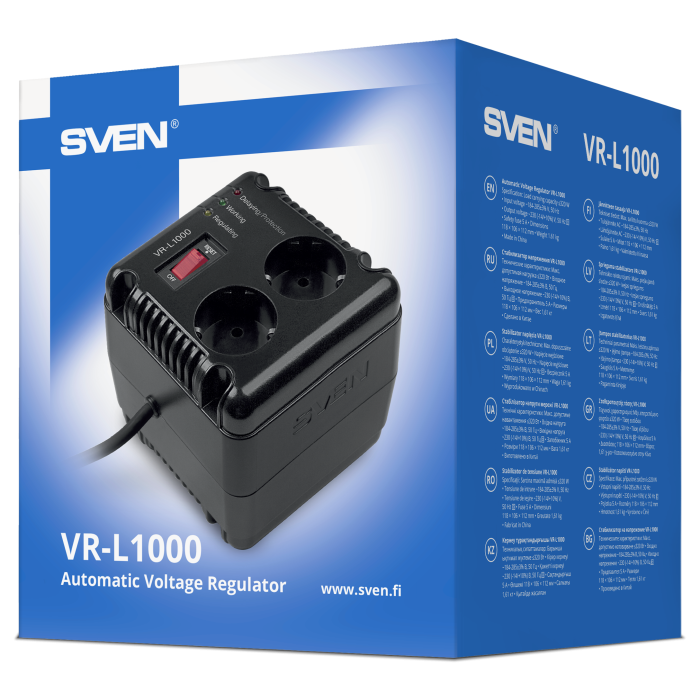

SVEN VR-L1000

Relay automatic voltage regulator, 320 W, 2 sockets

Catalog Electrical Equipment Automatic Voltage Regulators SVEN VR-L1000

AN: SV-014872

SVEN VR-L1000

Relay automatic voltage regulator, 320 W, 2 sockets

Short product description:

Single-phase relay-type stabilizer

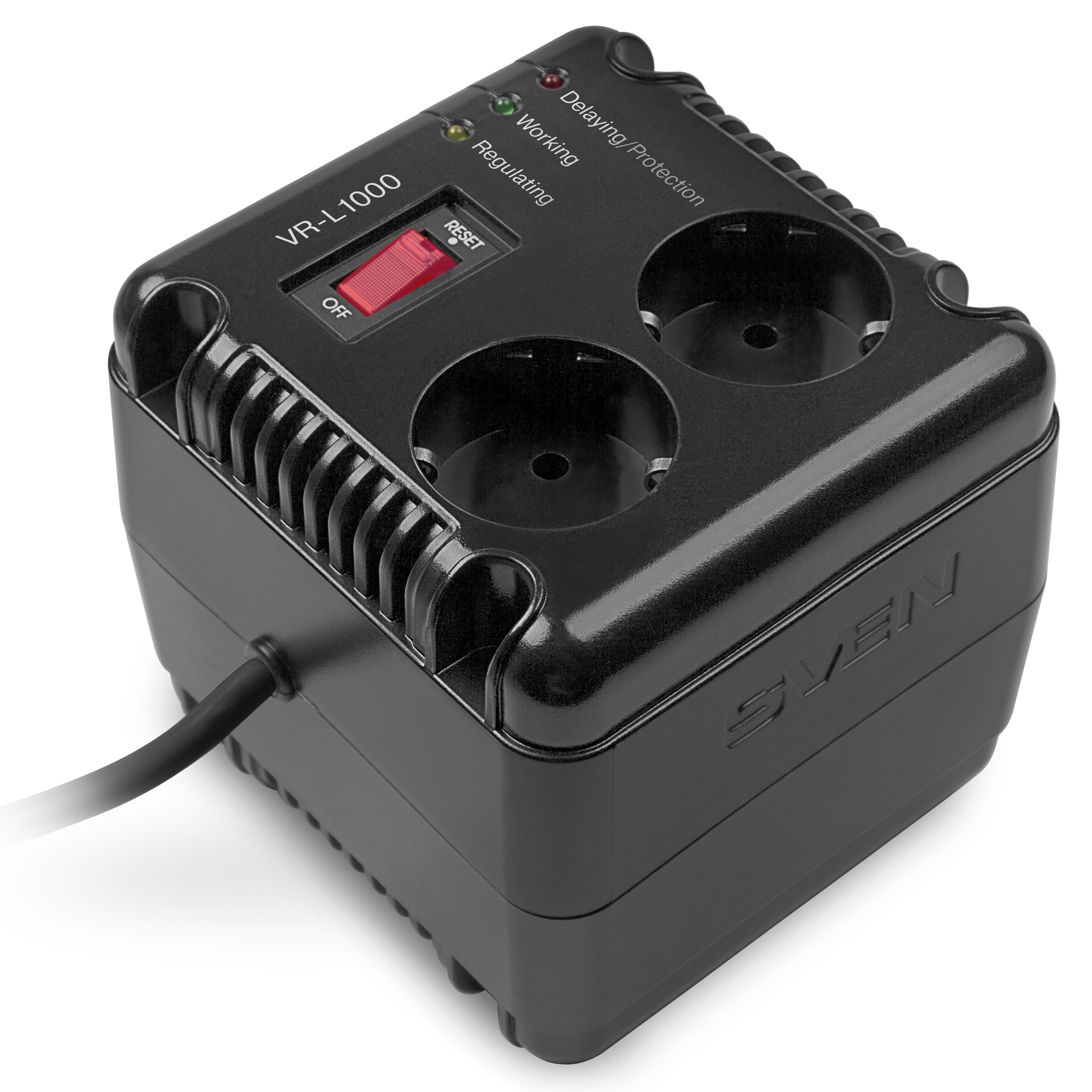

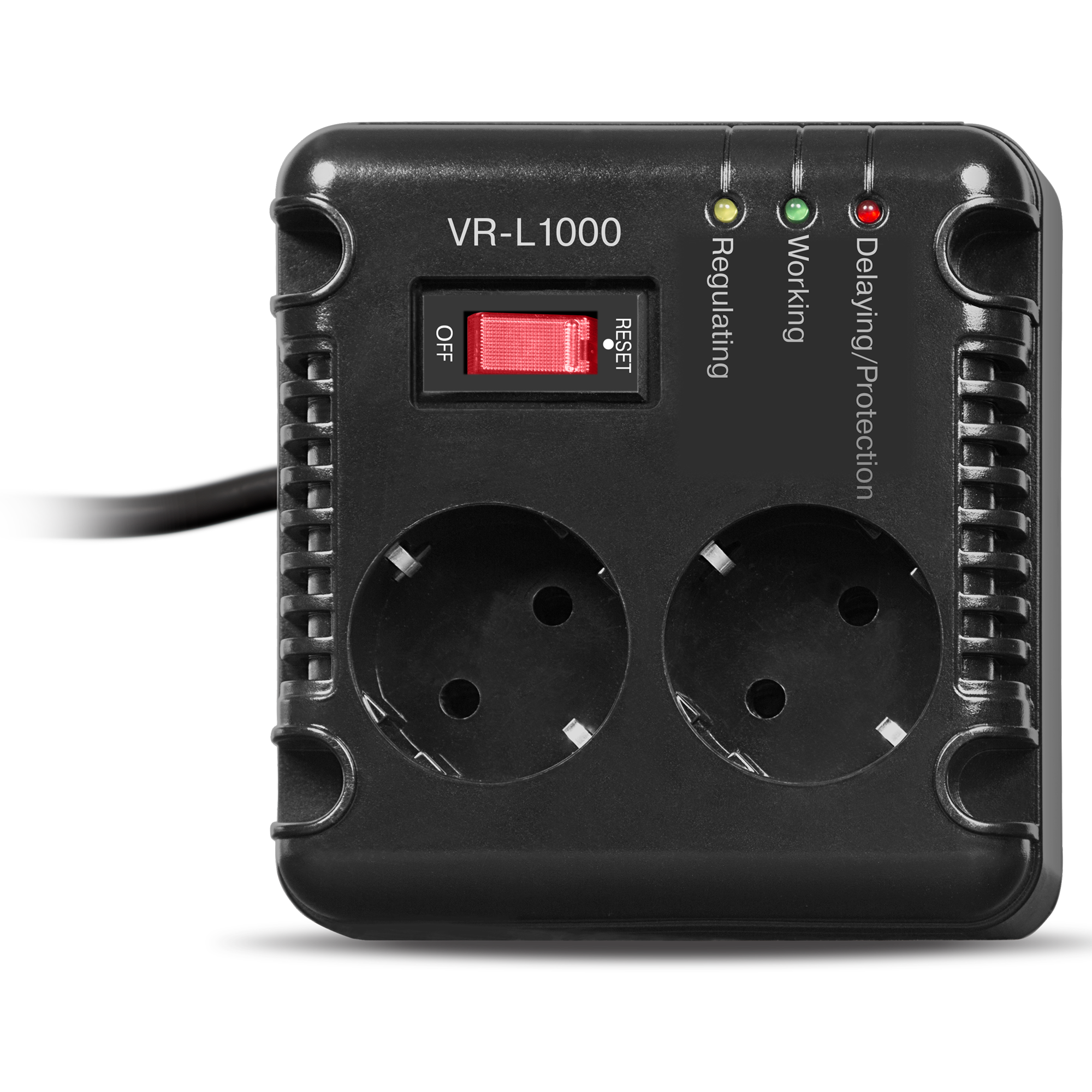

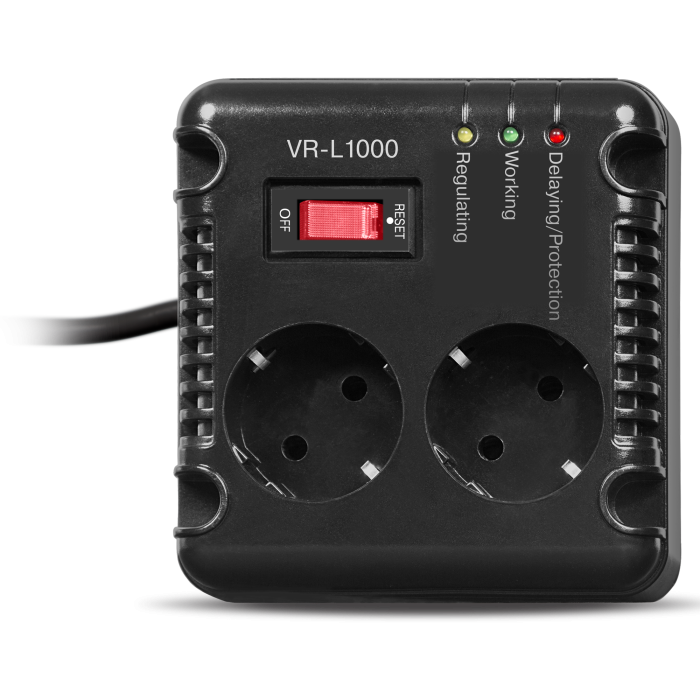

LED indication of operating modes
Thermal protection of the transformer
Safe shutdown at high and low mains voltage levels

All features

Similar products

SVEN VR-L600

SVEN VR-L1500

SVEN VR-A1000

SVEN AVR SLIM-500 LCD

SVEN AVR SLIM-1000 LCD

SVEN AVR SLIM-2000 LCD

SVEN VR-F600

SVEN VR-F1000

SVEN VR-F1200U

SVEN VR-F1500

SVEN VR-F2000U

FEATURES
SPECIFICATIONS
DESCRIPTION
UNBOXING VIDEO
SUPPORT

Single-phase relay-type stabilizer
LED indication of operating modes
Thermal protection of the transformer
Safe shutdown at high and low mains voltage levels
Varistor protection against high-voltage impulse noise
Two EU sockets CEE7/4 (EU) with durable fixation of plugs of any type

AVR type	relay
Maximum load, W	≤320
Input voltage, V	~184 – 285±3%
Output voltage, V	~230 (-14/+10%)
Input frequency, Hz	50
Output frequency, Hz	50
Output sockets	2 × СЕЕ7/4
Protection	against high/low voltage, high-voltage pulse, short circuit and overload, built-in thermal protection
Protection operating current, A	5
Indicators	on-line operation, voltage overload, stabilization mode
Fuse	bimetallic circuit breaker
Maximal suppressed energy, Joule	≤320
Input plug	1 × СЕЕ7/7
Environmental temperature, °С	0 to +40
Relative humidity, %	10 ~ 90 (without condensation)
Dimensions (W × H × D), mm	118 × 106 × 112
Product life	5 years

Package contents

Automatic voltage regulator — 1 pc
User manual — 1 pc
Warranty card — 1 pc
