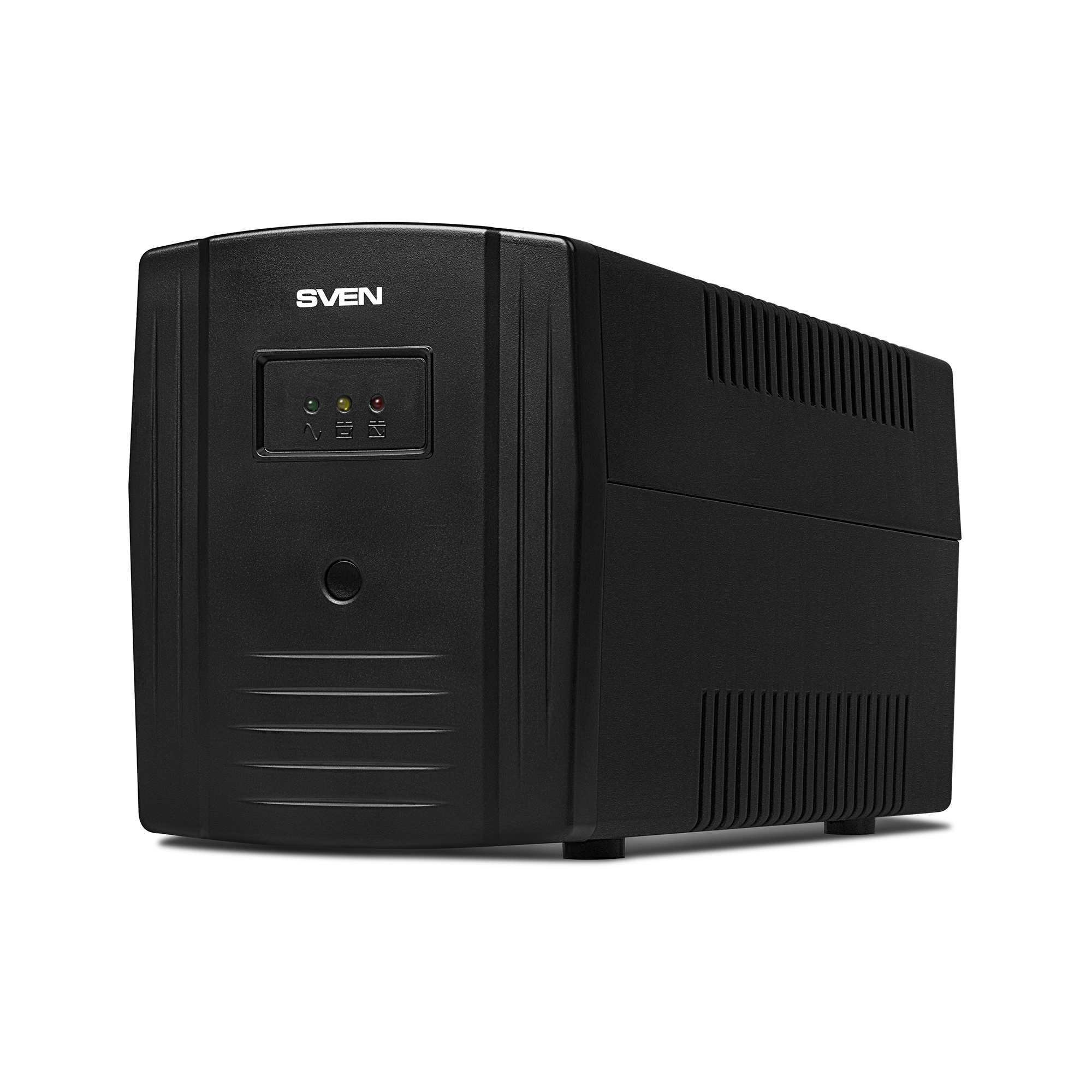

SVEN Pro 1000 (USB)
Line interactive UPS, 720W, 3 sockets
.png "Built-in automatic voltage regulator")
AN: SV-013868
SVEN Pro 1000 (USB)
Line interactive UPS, 720W, 3 sockets
Short product description:
- Line Interactive UPS Type
- Built-in AVR with wide input voltage range
- Automatic self-testing when turned on
- Cold start function
Similar products
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1500 (LCD, USB)
SVEN UP-L800
SVEN UP-L1000E

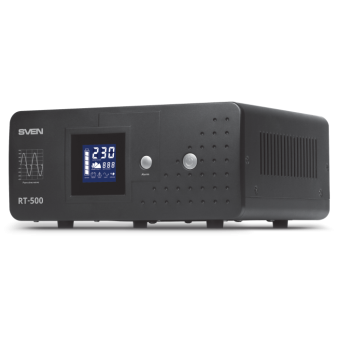

SVEN RT-500

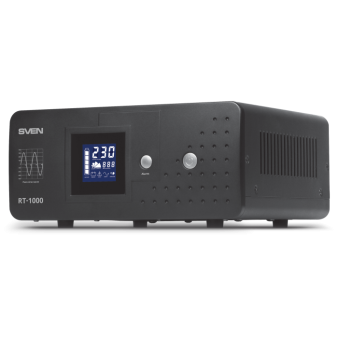

SVEN RT-1000
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1500 (LCD, USB)
SVEN UP-L800
SVEN UP-L1000E
SVEN RT-500
SVEN RT-1000
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Line Interactive UPS Type
- Input voltage ~175-280V (±3%)
- Output voltage ~230V (-14/+10%)
- Built-in AVR with wide input voltage range
- Automatic self-testing when turned on
- Cold start function
- "Autostart" function when connecting / restoring mains power
- Sinusoidal output voltage during battery operation
- Built-in surge protector for protection against HF pulses and interference

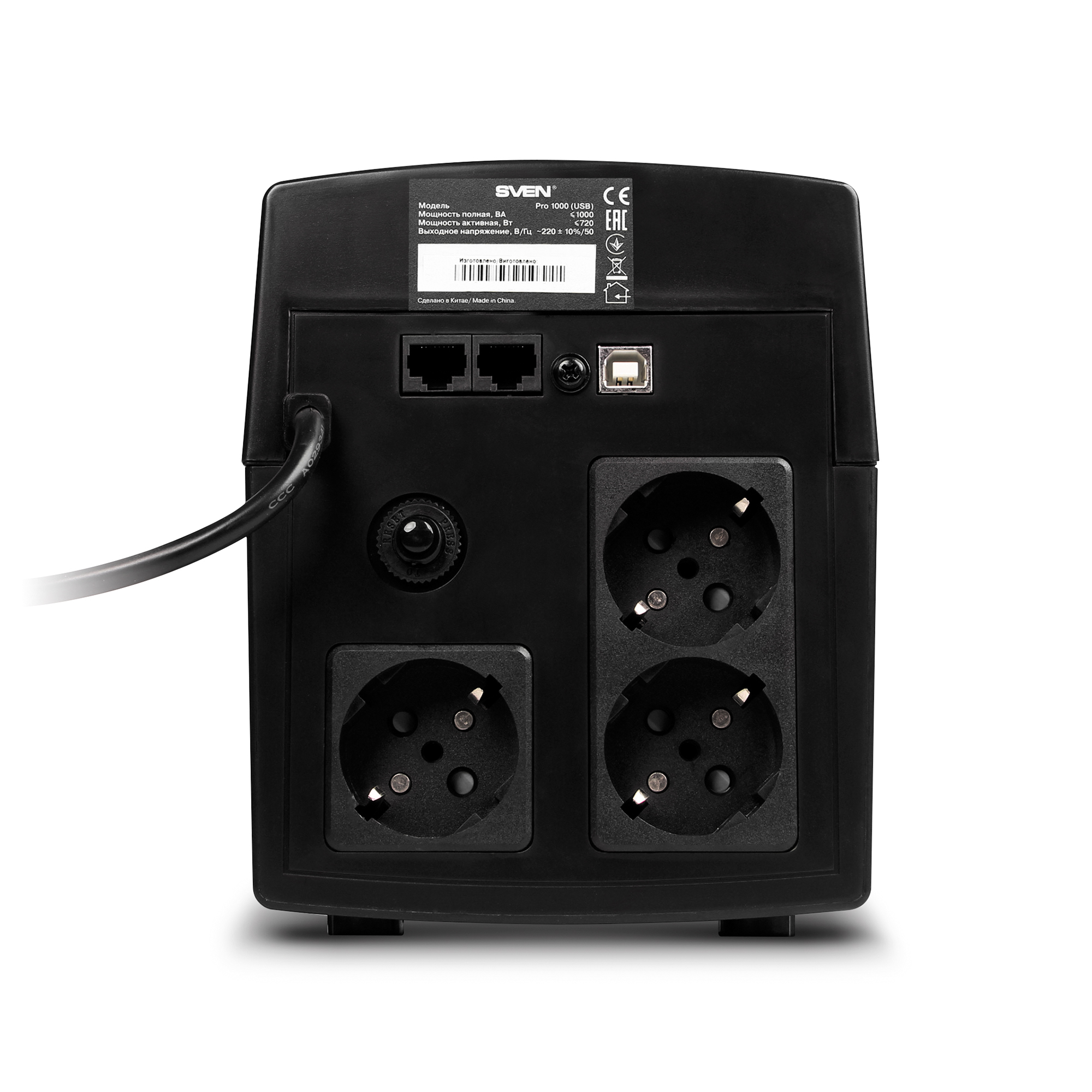

- Three euro sockets CEE7/4 (EU) with durable fixation of plugs of any type
- Children protection
- Thermal protection of the transformer
- Protection of connected equipment via RJ-45 port
- Connection to a computer via USB port to control the operation of the UPS*
* The software only works with Windows 7/8/10/11
| UPS type | line-interactive |
| Total power, VА | 1000 |
| Active power, W | 720 |
| Type of load | computer, monitor |
| Input voltage level, V | 175 – 280 ± 3% |
| Output voltage level, V | ~230 (-14/+10%) |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 ± 1 % (backup mode) |
| Battery voltage, V | 2 × 12 |
| Battery capacity, А•h | 2 × 7 |
| Typical switching time, ms | ≤ 10 |
| Batteries operation time, min | 3-20 (dependent on connected load) |
| AGM battery model recommended for use in this model of UPS | 2 × SV1270 / 2 × SV1272 |
| Environmental temperature, °С | 0 – 40 |
| Relative humidity, % | 10 – 90 |
| Efficiency, % | > 70 |
| Dimensions (W × H × D), mm | 175 × 140 × 350 |
| Weight, kg | 8.66 |
| Color | black |
| Life time | 5 years |

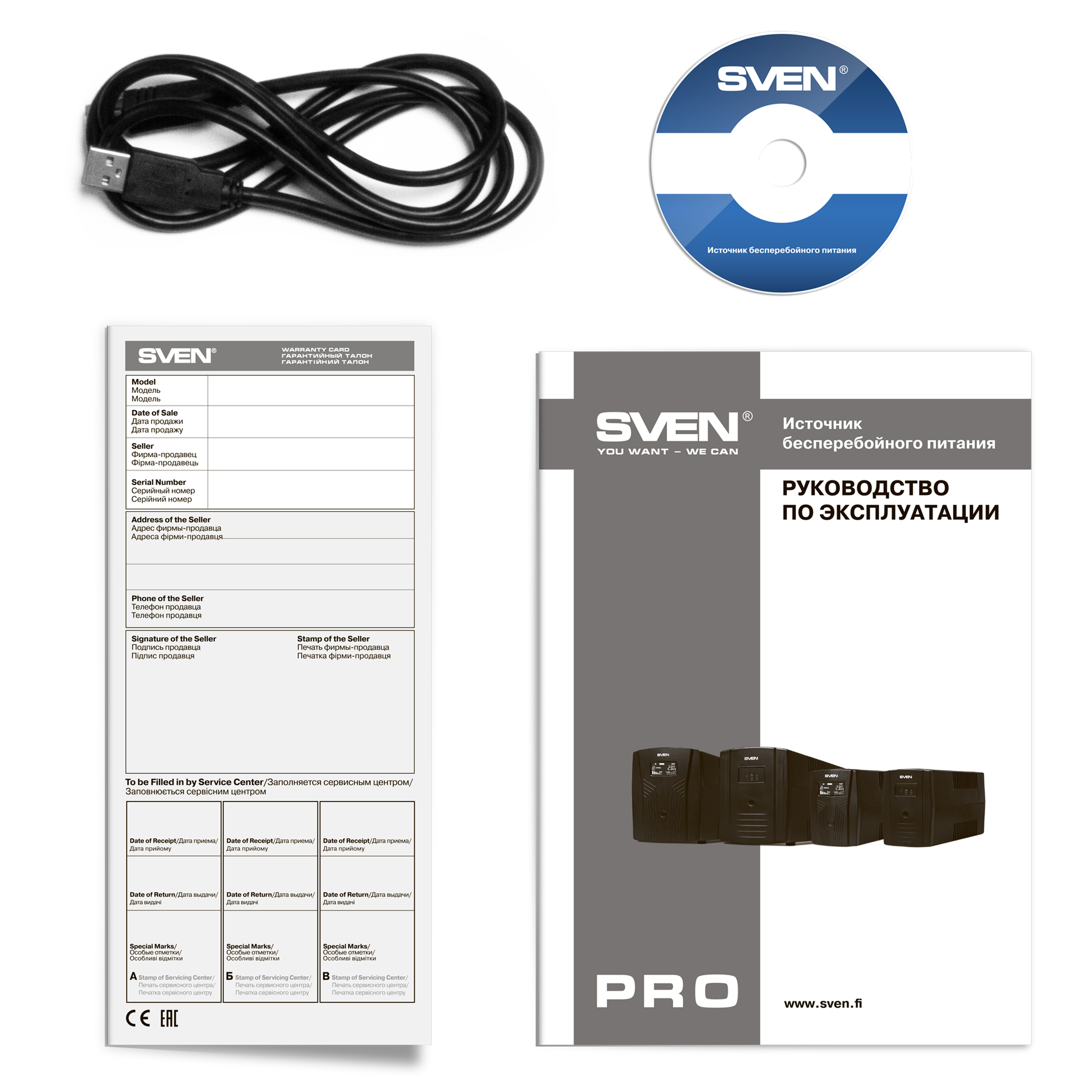

Package contents
- Uninterruptible power supply — 1 pc
- Software CD disk — 1 pc
- Interface cable — 1 pc
- Operation manual — 1 pc
- Warranty card — 1 pc
