SVEN Pro+ 650 (LCD, USB)
SVEN Pro+ 650 (LCD, USB)
Short product description:
- Wide range of input voltage auto regulation
- Digital microprocessor control
- Indication of basic UPS operation modes
- Sound alarm at critical discharge level of storage batteries...
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1000 (USB)
SVEN Pro 1500 (LCD, USB)
SVEN UP-L800
SVEN UP-L1000E
SVEN RT-500
SVEN RT-1000
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Wide range of input voltage auto regulation
- Digital microprocessor control
- Indication of basic UPS operation modes
- Sound alarm at critical discharge level of storage batteries (without switch-off option)
- Sine approximated output voltage in off-line mode
- Cold start function

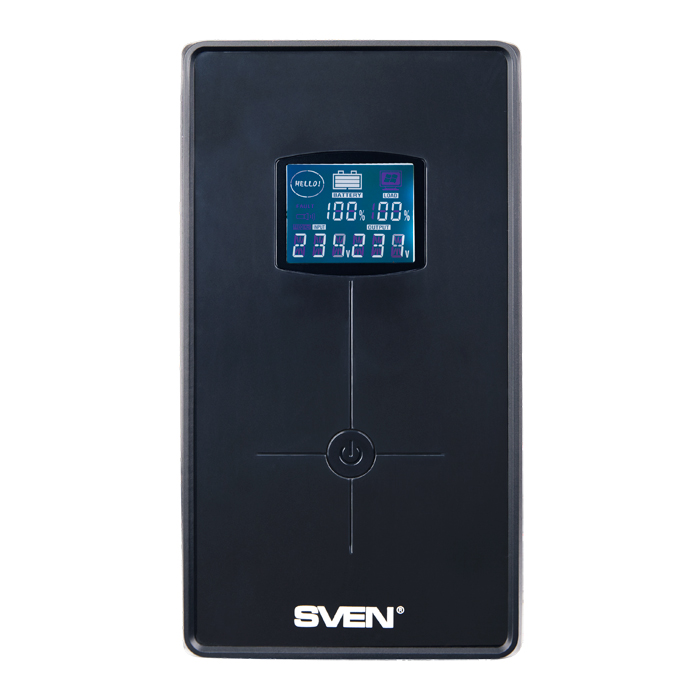

- Multifunction LCD display
- Transformer thermal protection
- Metal case
| UPS type | line-interactive |
| Total power, VА | 650 |
| Active power, W | 390 |
| Type of load | computer, monitor |
| Maximum load, W | 390 |
| Input voltage level, V | ~165 – 275 |
| Output voltage level, V | ~220 ± 10 % |
| Output voltage waveform | approximated sinusoid |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 ± 1 % (backup mode) |
| Communication port | USB, RJ-11 |
| Input socket | CEE 7/7 |
| Output sockets | CEE 7/4 |
| Protection | against short circuit, impulse and high frequency interferences; transformer thermal protection |
| Accumulator type | maintenance-free sealed lead-acid batteries (consumables) |
| Battery voltage, V | 12 |
| Battery capacity, А•h | 7 |
| Typical switching time, ms | ≤ 10 |
| Batteries operation time, min | 3 – 20, depending on the connected loading |
| Indicators | power LED, on-line operation LED, charge LED |
| Fuse | current limiter of voltage transducer |
| Environmental temperature, °С | 0 – 40 |
| Relative humidity, % | 10 – 90 |
| Efficiency, % | 80 |
| Case material | metal |
| Dimensions (W × H × D), mm | 95 × 165 × 340 |
| Weight, kg | 5.5 |
| Color | black |
| Life time | 5 years |
Other items
Multifunctional speaker system with Bluetooth, USB/SD player, FM radio, display, remote control
Multifunctional speaker system with Bluetooth, USB/SD player, FM radio, display, remote control
News
SVEN MC-15 HI-FI SPEAKER SYSTEM — HIGH-QUALITY SOUND IN THE SOUND STUDIO, LIVING ROOM, GAME ROOM
We are expanding the range of Hi-Fi products of MC series — introducing the new SVEN MC-15 multimedia 2.0 speaker system, an elegant combination of advanced technology and thoughtful design made for those who appreciate authentic sound quality.
Details >>
SVEN MC-25 HI-FI SPEAKER SYSTEM — PREMIUM SOUND FOR TRUE AUDIOPHILES
We’re continuing to expand our premium MC series of Hi-Fi stereo systems with the launch of the new SVEN MC-25 2.0 speaker system — an accessible gateway into the world of high-fidelity audio, where every sonic detail unfolds with remarkable clarity and expressiveness.
Details >>
SVEN PS-375 PORTABLE SPEAKER — DEEP BASS AND DYNAMIC RGB LIGHTING
Introducing the new portable speaker system, the SVEN PS-375 — designed for those who appreciate powerful bass, crisp high frequencies, and the freedom to move without being tethered to a power outlet.
Details >>SVEN Pro+ 650 line-interactive UPS is designed for protection of PCs, workstations, as well as servers equipped with switch power supplies. Due to its battery, the UPS can operate even in case of complete absence of mains power, which gives the user a possibility to save data and shut down the operating system correctly. The built-in automatic voltage regulator allows increasing/reducing the input voltage without switching to battery mode and ensures long uninterruptible work. This feature is vital for networks with unstable voltage.
SVEN Pro+ 650 UPS is supplied with Cold Start function, allowing to switch on the UPS in conditions of complete absence of mains voltage. The built-in USB port gives a possibility to monitor the mains from your PC and shut down the PC in automatic mode. Besides, The UPS is equipped with a multifunction LCD display showing the mains status, load and battery discharge level.
