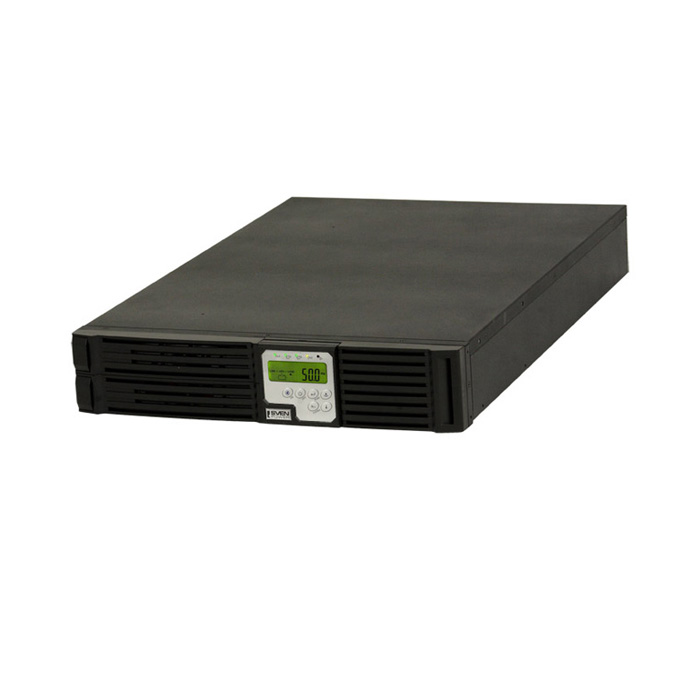

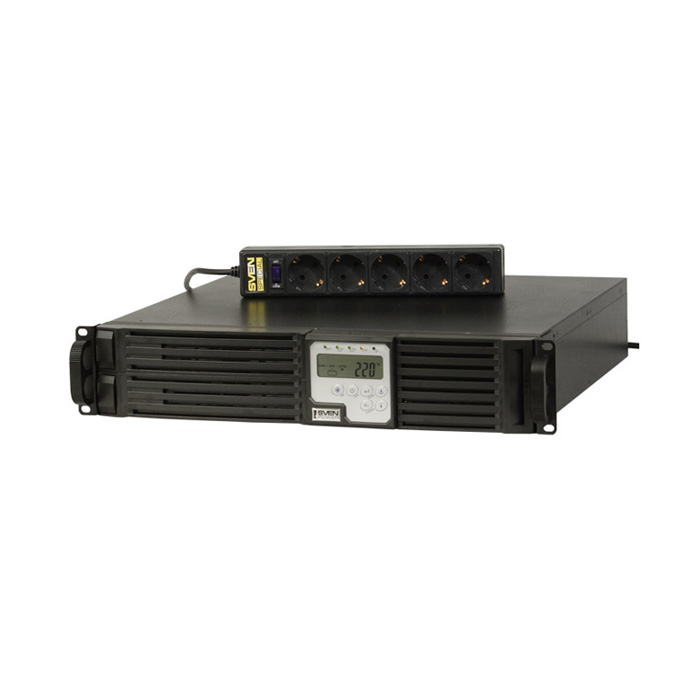

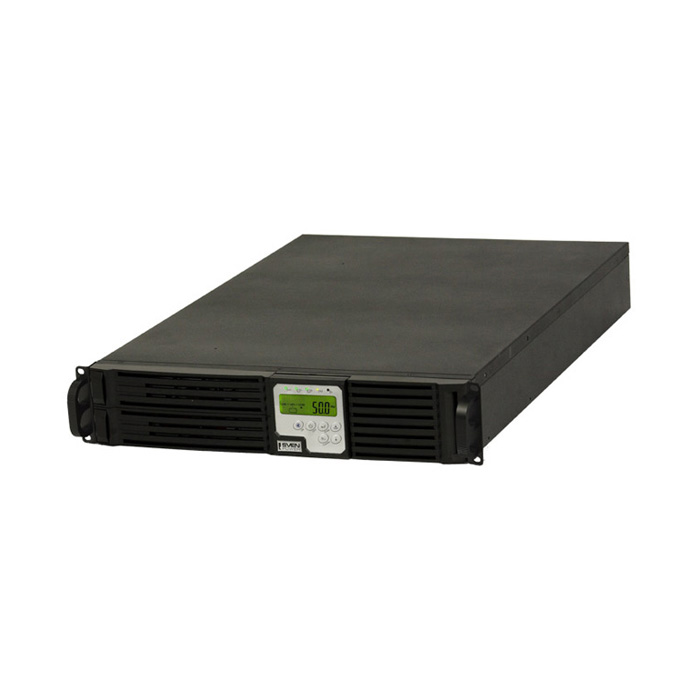

SVEN Power Smart RM 2U L LCD 3000
SVEN Power Smart RM 2U L LCD 3000
Short product description:
- High efficiency
- Zero time switch from standby to off-line operation mode, th...
- Wide range of auto voltage regulation (АVR)
- Nominal output voltage adjustable by the user
SVEN SRP-555
SVEN SRP-535
SVEN SRP-525
SVEN SRP-505
SVEN SRP-500
SVEN SRP-450
SVEN SRP-355
SVEN SRP-155
SVEN SRP-150
SVEN SRP-100
SVEN SRP-50
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- High efficiency
- Zero time switch from standby to off-line operation mode, the sinusoid shape doesn’t break off and doesn’t distort
- Wide range of auto voltage regulation (АVR)
- Nominal output voltage adjustable by the user
- Digital microprocessor control

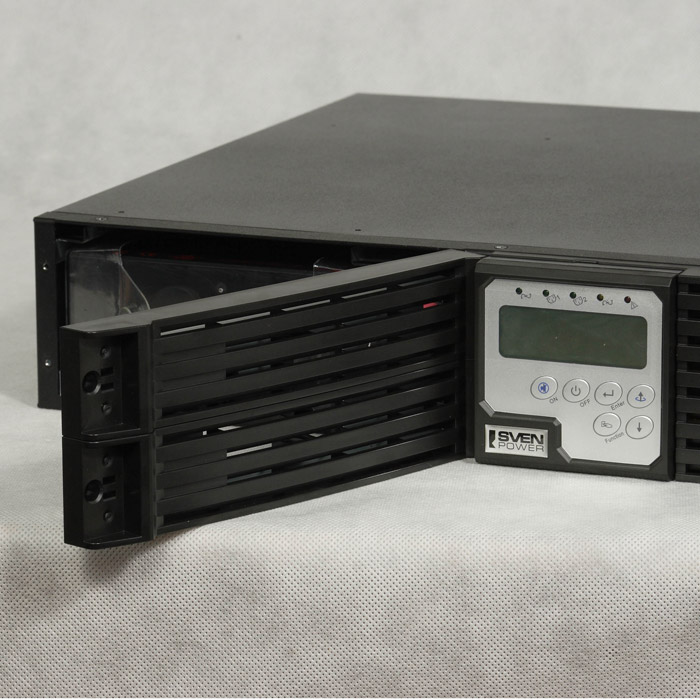

- LCD indication of basic operation modes, values of input and output parameters
- Vertical, horisontal placement (Rack/Tower)
- 2U rack mounting
- Sine output voltage
- Cold Start function at DC power supply
- USB and RS-232 communication port
- High degree of consumed current shape correction provides full suppression of interferences and distortions in the supply mains
- Power delivery renewal mode provides its automatic supply both after a short-time power switch-off and after long-time absence of power supply
- Automatic switch to Bypass mode at overload and automatic returning to Online mode at load reduction to the allowed level
- Two output sockets with programmable switch-off
- Separate circuit breaker for each socket
- Input circuit breaker for protecting from overload and short-circuit
- EPO port available for remote emergency switch-off
- UPS and rechargeable battery system self-testing mode

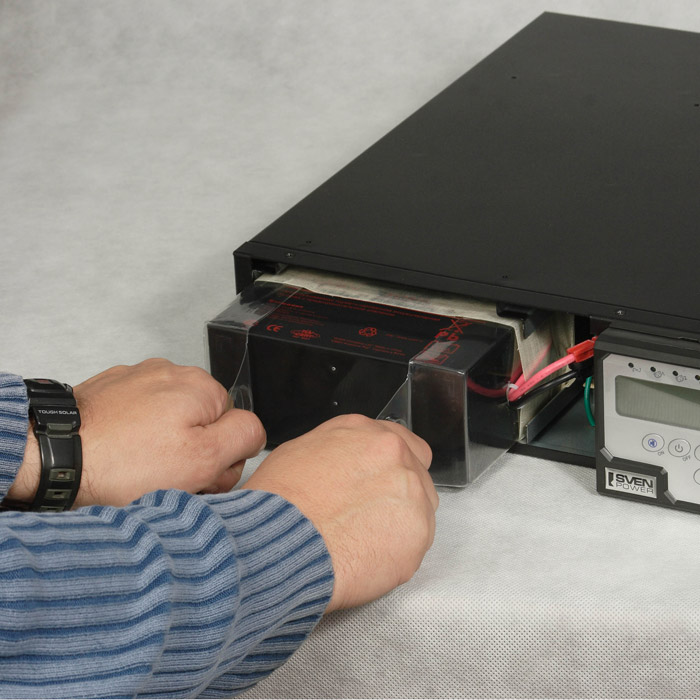

- Possibility of connection of additional rechargeable batteries
| Maximum load, VA/W | 3000/2100 |
| Input voltage level, V | 120-288 |
| Output voltage level, V | 220 ± 1 % (on-line/off-line), possiblr setting to 220/208/220/230/240 |
| Output voltage waveform | sine wave (on-line), sine wave (off-line), total harmonic distortion < 3% |
| Frequency, Hz | 50/60 |

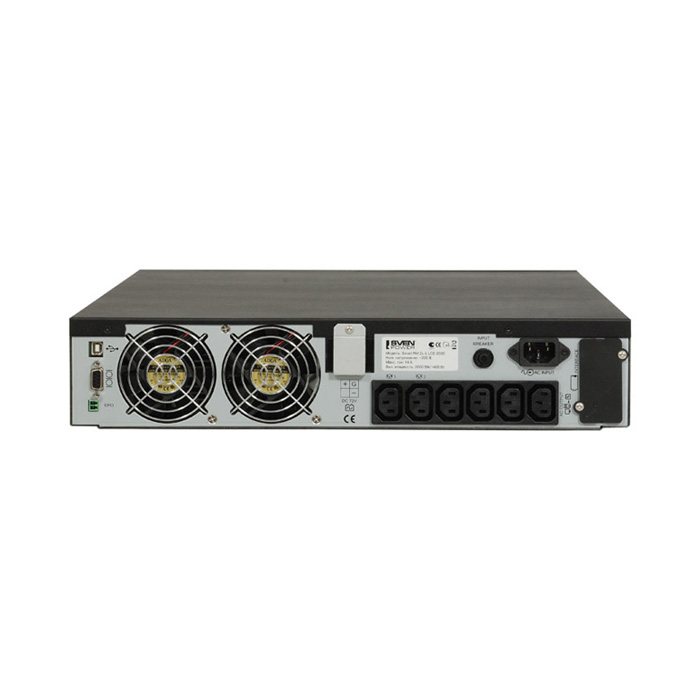

| Communication port | USB, RS-232, EPO |
| Input terminals | 10 A, IEC 320-C14 |

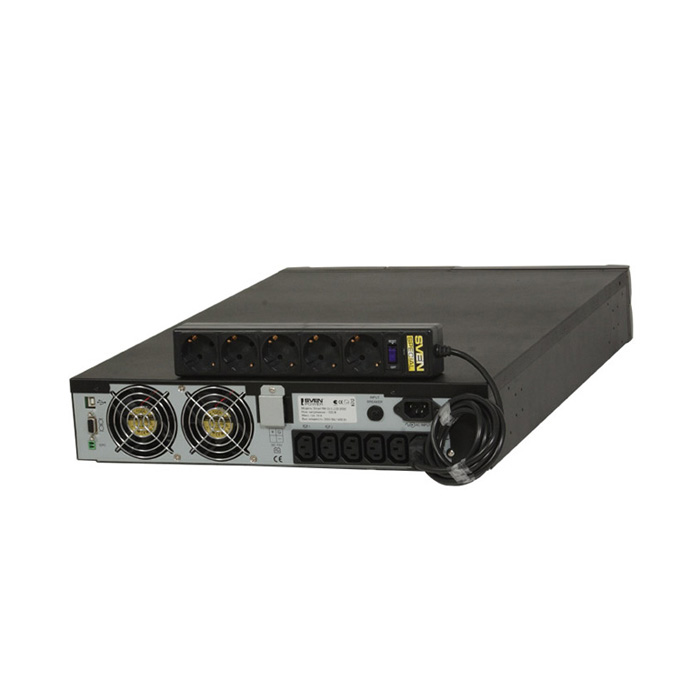

| Output sockets | (4) 10 A, IEC 320-C13 + (1) 16 A, IEC 320-C19 |
| Protection | from high input current, short circuit, overload, lightning stroke, voltage surges, falls, brownouts, blackouts |
| Alarm signals | < 45 dB at a distance of 1 meter |
| Accumulator type | maintenance-free sealed lead-acid batteries (consumables) |
| Accumulators capacity | 12 V х 9 А h (6 pieces) |
| Typical switching time, ms | 0 (Online) |
| Batteries operation time, min | 5/12 (full load/half load ) |
| Indicators | LCD indication of basic operation modes, values of input and output parameters, battery capacity |
| Processor | RISC-microprocessor based |
| Controlled variable | current input and output voltage, frequency, output power, battery condition |
| Environment operation conditions | 0-40 °C moisture 0 - 90% without condensation |
| Supported interfaces | intelligent software support of Win Mе/NT/2000/XP/Vista/Novell NetWare, Linux |
| Certificates | CE,UL, cUL, FCC |
| Floating time | 4 hours up to > 90% |
| Dimensions (W × H × D), mm | 650 x 440 x 88(2U) |
| Weight, kg | 29.8 |
| Life time | 5 years |
