SVEN Power Smart 1500
SVEN Power Smart 1500
Short product description:
- Digital microprocessor control
- High efficiency
- Wide range of auto voltage regulation (АVR)
... - Sinusoidal output voltage both in on-line and off-line mode ...
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1000 (USB)
SVEN Pro 1500 (LCD, USB)
SVEN UP-L800
SVEN UP-L1000E
SVEN RT-500
SVEN RT-1000
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Digital microprocessor control
- High efficiency
- Wide range of auto voltage regulation (АVR)
- Sinusoidal output voltage both in on-line and off-line mode
- Built-in surge protector
- Highly informative display indicating variables and basic operation modes
- Option of off-line operation mode sound signal switch-off by pressing a button on the front panel
- Sound alarm at critical discharge level of storage batteries (without switch-off option)
- USB and RS-232 communication port
- Nominal output voltage set by the user
- Impulse suppression connector for network equipment (modem, fax) protection
- Cold Start function at DC power supply
- Battery charge level indication in on-line and off-line mode
- Automatic recharge and deep battery discharge prevention system (ABM system)
- Automatic electricity delivery mode at power supply renewal
- Passive ventilation allows noiseless operation
- Short-circuit and overload protection
- Convenient and simple battery replacement
| Maximum load, VA/W | 1500/900 |
| Input voltage level, V | 220/230/240 В ± 25 % ( determined by the user ) |
| Output voltage level, V | 220/230/240 +12 % … -14 % (on-line), 220/230/240 +3 % … -10 % (off-line) |
| Output voltage waveform | sine wave (on-line), sine wave (off-line) |
| Frequency, Hz | 50/60 (determined by the user ) |

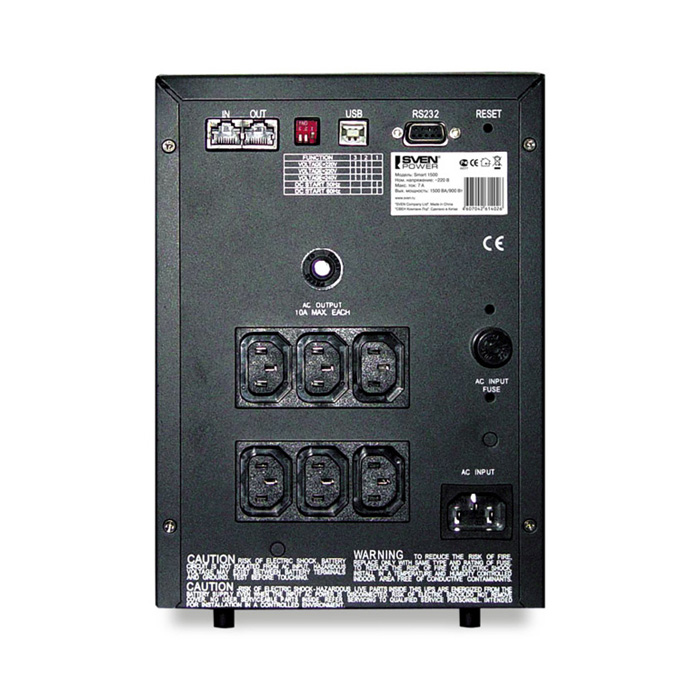

| Communication port | USB, RS-232 |
| Input terminals | IEC 320 (plug) |
| Output sockets | IEC 320 from the inverter (6 pieces) |
| Protection | from high input current, short circuit, overload, lightning stroke, voltage surges, falls, brownouts, blackouts. Modem / telephone circuit protection |
| Alarm signals | 30 dB beeps at a distance of 1 meter |
| Accumulator type | maintenance-free sealed lead-acid batteries (consumables) |
| Accumulators capacity | 12 V х 7 А h (2 pieces) |
| Typical switching time, ms | 4 |
| Batteries operation time, min | 2.5/7.1 (full load/half load ) |
| Indicators | of operating modes, level of battery load and charge, AVR operating modes, correct networking and grounding |
| Processor | RISC-microprocessor based |
| Controlled variable | current input and output voltage, frequency, output power, battery condition and charge level, temperature inside the case |
| Environment operation conditions | <5000 m above sea level, 0-50 °C, moisture 0 - 90% without condensation |
| Supported interfaces | intelligent software support of Win Mе/NT/2000/XP/Vista |
| Certificates | UL. cUL, FCC, [CE,TUV] РосТест |
| Floating time | 4 hours (up to >85 %), 10 hours max (up to >90 %) |
| Dimensions (W × H × D), mm | 173 x 369 x 247 |
| Weight, kg | 16 |
| Life time | 5 years |
