SVEN С77-22
SVEN С77-22
Short product description:
- VESA range: 100 × 100 / 200 × 100 / 200 × 200 mm
- Diagonal compatibility: 26" – 40" / 66 – 101.6 cm
- Adjustable tilt angle from -5° to +15°
- Rotation angle: ~ ±90°
SVEN PS-1250
SVEN PS-1050
SVEN PS-1900
SVEN PS-1500
SVEN PS-1000
SVEN PS-950
SVEN PS-930
SVEN PS-860
SVEN PS-850
SVEN PS-800
SVEN PS-770
SVEN PS-750
SVEN PS-740
SVEN PS-730
SVEN PS-720
SVEN PS-710
SVEN PS-680
SVEN PS-670
SVEN PS-655
SVEN PS-650
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- VESA range: 100 × 100 / 200 × 100 / 200 × 200 mm
- Diagonal compatibility: 26" – 40" / 66 – 101.6 cm
- Adjustable tilt angle from -5° to +15°
- Rotation angle: ~ ±90°
- Easy installation and mounting
- High-strength polymer coating

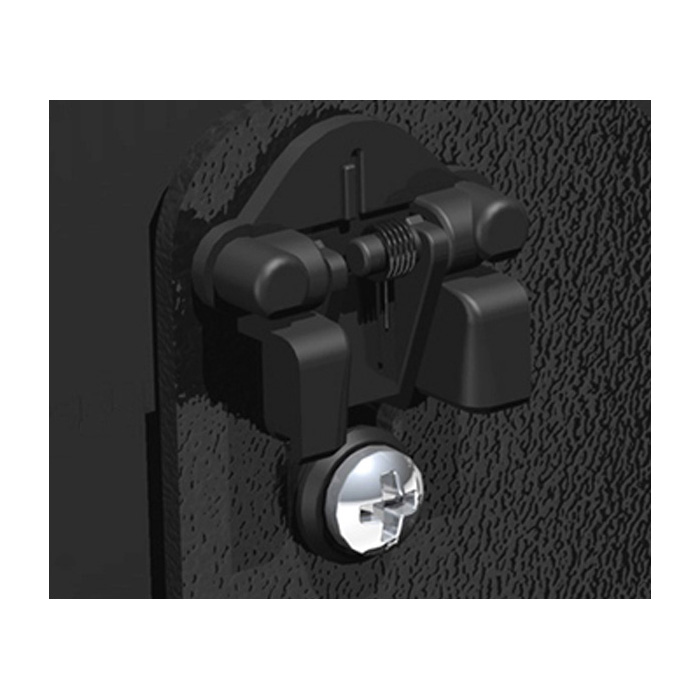

- Security locks

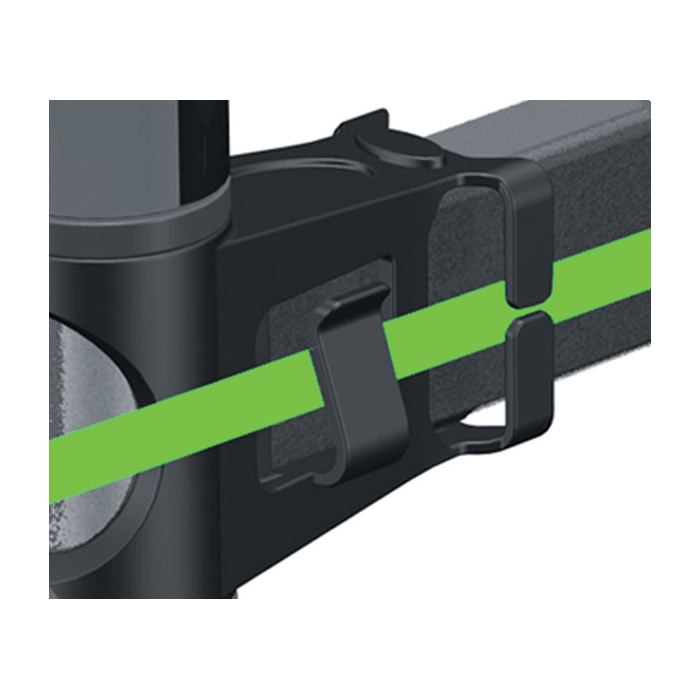

- Guides for cable mounting

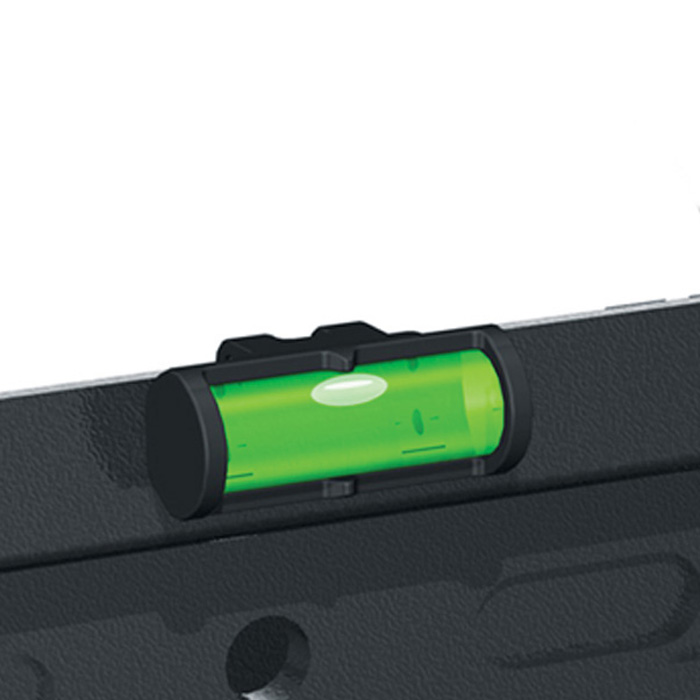

- Level gauge included

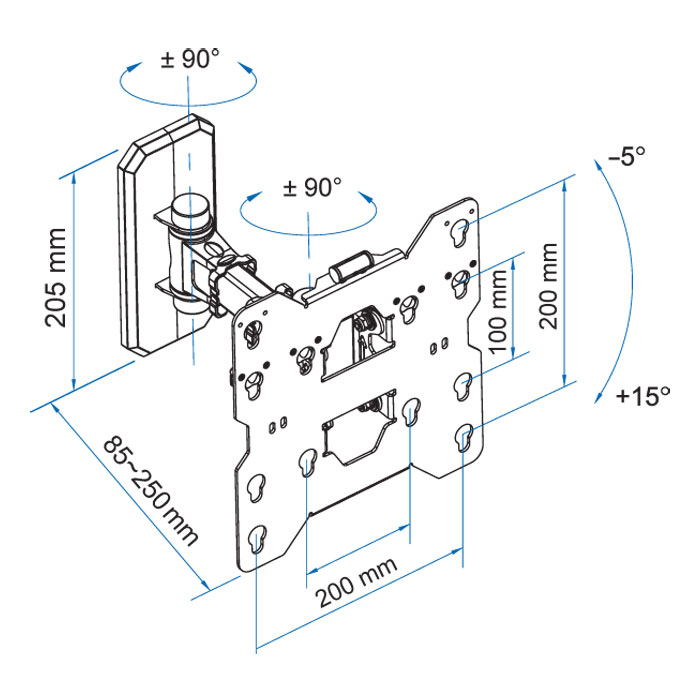

| VESA range, mm |
100 × 100 200 × 100 200 × 200 |
| Diagonal compatibility, inch/cm | 26 – 40 / 66 – 101.6 |
| Maximum load, kg | 35 |
| Number of degrees of freedom | 4 |
| Distance from wall, mm | 85 ~ 250 |
| Adjustable tilt angle, degrees | -5 to +15 |
| Swivel angle, degrees | ~ ±90 |
| Mounting type | tilt-swivel |
| Coating type | high-strength polymer |
| Weight, kg | 2.4 |
| Color | black |
| Life time | 15 years |
Other items
News
SVEN MC-15 HI-FI SPEAKER SYSTEM — HIGH-QUALITY SOUND IN THE SOUND STUDIO, LIVING ROOM, GAME ROOM
We are expanding the range of Hi-Fi products of MC series — introducing the new SVEN MC-15 multimedia 2.0 speaker system, an elegant combination of advanced technology and thoughtful design made for those who appreciate authentic sound quality.
Details >>
SVEN MC-25 HI-FI SPEAKER SYSTEM — PREMIUM SOUND FOR TRUE AUDIOPHILES
We’re continuing to expand our premium MC series of Hi-Fi stereo systems with the launch of the new SVEN MC-25 2.0 speaker system — an accessible gateway into the world of high-fidelity audio, where every sonic detail unfolds with remarkable clarity and expressiveness.
Details >>
SVEN PS-375 PORTABLE SPEAKER — DEEP BASS AND DYNAMIC RGB LIGHTING
Introducing the new portable speaker system, the SVEN PS-375 — designed for those who appreciate powerful bass, crisp high frequencies, and the freedom to move without being tethered to a power outlet.
Details >>SVEN Company, a well-known company for a long time as a producer of speaker systems and computer peripherals, in 2013 starts supplying VESA standard wall mounts for LED/LCD/Plasma TV sets and monitors. VESA is the standardization of TV sets, LCD monitors, plasma panels including mechanical elements as well (i.e. brackets) used during installation and fastening of TV sets or monitors to walls and ceilings.

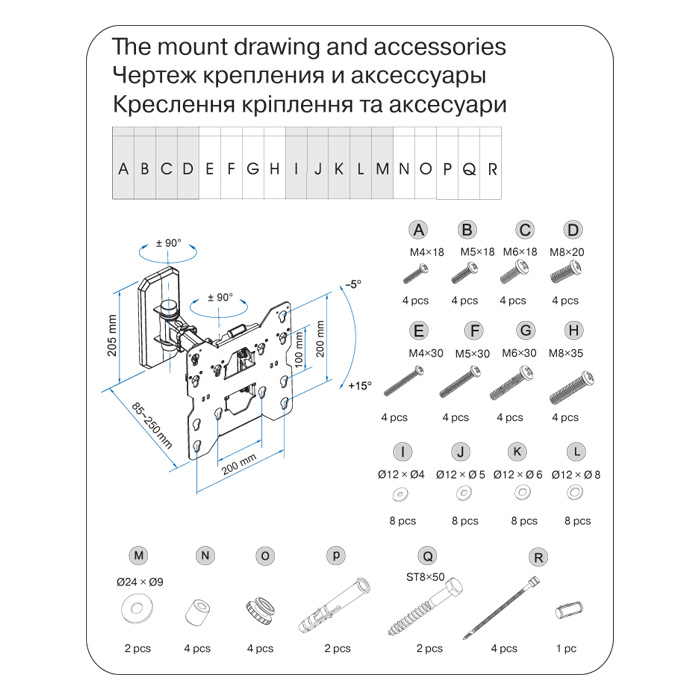

Reliability and quality of construction, ease of mounting and installation, a possibility to adjust an angle of inclination, application of special high-strength polymeric painting are the features of the presented ТМ SVEN mounts. All models are equipped with safety locks for reliable fixation. All required installation accessories are included in delivery sets.
С-series comprising models, С71-11, С77-22 and С81-44, is the rotary-cum-inclined mount type with the number of degrees of freedom from 4 (rotation by the angle ±90°, angle of inclination from -5° to +15°) up to 6 (rotation by the angle ±90°, angle of inclination from -5° до +15°, horizon adjustment from -3° to +3°). These models are designed for TV sets and monitors with VESA dimensions from 75 to 400 mm. They are also equipped with fixation cable guides.
All the models have 5-year warranty. Life time is 15 years.
If you are looking for universality, functionality and affordability, ТМ SVEN products are just for you!
